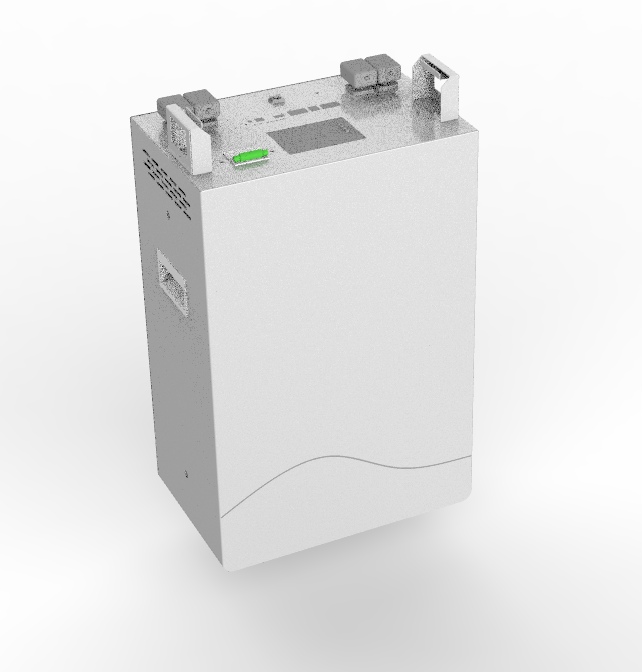

48V / 51.2V LiFePO4 Battery

48V / 51.2V stackable wall-mounted LiFePO4 battery with high energy density, stylish appearance, easy installation and expansion. Widely used in telecom base stations, commercial energy storage, UPS (Uninterruptible Power Supply), and residential energy storage systems.

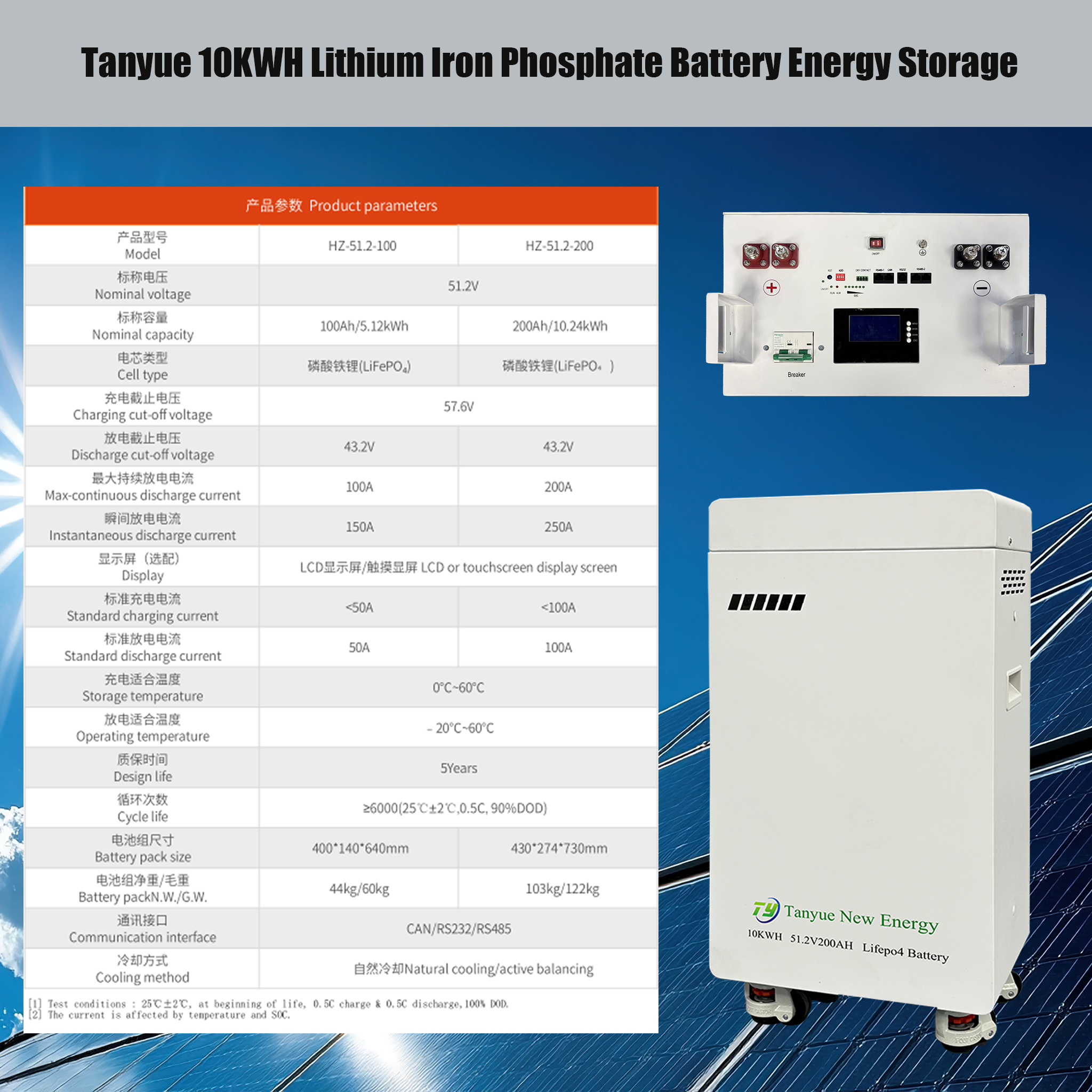

Product Parameters

Model:

HZ-51.2-100
HZ-51.2-200

Nominal Voltage: 51.2V

Nominal Capacity:

100Ah / 5.12kWh
200Ah / 10.24kWh

Cell Type: LiFePO₄ (Lithium Iron Phosphate)

Charging Cut-off Voltage: 57.6V

Discharge Cut-off Voltage: 43.2V

Max Continuous Discharge Current:

100A (HZ-51.2-100)
200A (HZ-51.2-200)

Instantaneous Discharge Current:

150A (100Ah model)
250A (200Ah model)

Display (Optional): LCD display / Touchscreen display

Standard Charging Current:

<50A (100Ah model)
<100A (200Ah model)

Standard Discharge Current:

50A (100Ah model)
100A (200Ah model)

Storage Temperature: 0℃ ~ 60℃

Operating Temperature: – 20℃ ~ 60℃

Design Life: 5 Years

Cycle Life: ≥6000 cycles (25±2℃, 0.5C, 90% DOD)

Battery Pack Size:

400 × 140 × 640 mm (100Ah)
430 × 274 × 730 mm (200Ah)

Battery Pack N.W./G.W.:

44kg / 60kg (100Ah)
103kg / 122kg (200Ah)

Communication Interface: CAN / RS232 / RS485

Cooling Method: Natural cooling / active balancing

Test Conditions

[1] Test conditions: 25℃ ±2℃, at beginning of life, 0.5C charge & 0.5C discharge, 100% DOD.
[2] The current is affected by temperature and SOC.
